Overview

To authenticate with Workday (Refresh Token), you will need:
  1. Token Domain - The domain used to obtain tokens for your Workday account
  2. Tenant - The tenant of your Workday account
  3. Client ID - Your Workday API Client ID
  4. Client Secret - Your Workday API Client Secret
  5. Refresh Token - Your Workday refresh token for the Integration System User (ISU)
This guide will walk you through finding your connection configuration values and obtaining your API client credentials.

​
Prerequisites:

  • You must have an active Workday account with administrator access
  • You must have access to register API clients for integrations

​
Instructions:

​
Step 1: Finding your Token Domain

  1. Log in to your Workday instance.
  2. In your Workday homepage, go to the search bar and type View API Clients then select it.
  3. You can locate your Token Domain within the Token Endpoint field.
  4. The Token Domain is everything after https:// and before ccx.
  • Example: If the endpoint is https://wd2-impl-services1.workday.com/ccx/oauth2/acme/token, your Token Domain is wd2-impl-services1.workday.com.

​
Step 2: Finding your Tenant

  1. In the same Token Endpoint field from the View API Clients report, the Tenant is the final part of the URL after /oauth2/ and before /token.
  • Example: If the endpoint is https://wd2-impl-services1.workday.com/ccx/oauth2/acme/token, your Tenant is acme.

​
Step 3: Registering an API Client

  1. Navigate to Register API Client for integration in your Workday instance
  2. Click Register API Client for Integrations
  1. Enter a meaningful name to indicate that this API client is used for your integration (e.g., “Nango Integration”)
  2. Select Non-Expiring Refresh Tokens to ensure long lived access
  3. Select all the OAuth2 scopes and Functional Area scopes that you need for the recipes you intend to create
  4. Save the Client ID and Client Secret before clicking Done. These will be required to create a Workday connection

​
Step 4: Generating a Refresh Token

After registering your API client, you need to generate a refresh token for your Integration System User (ISU).

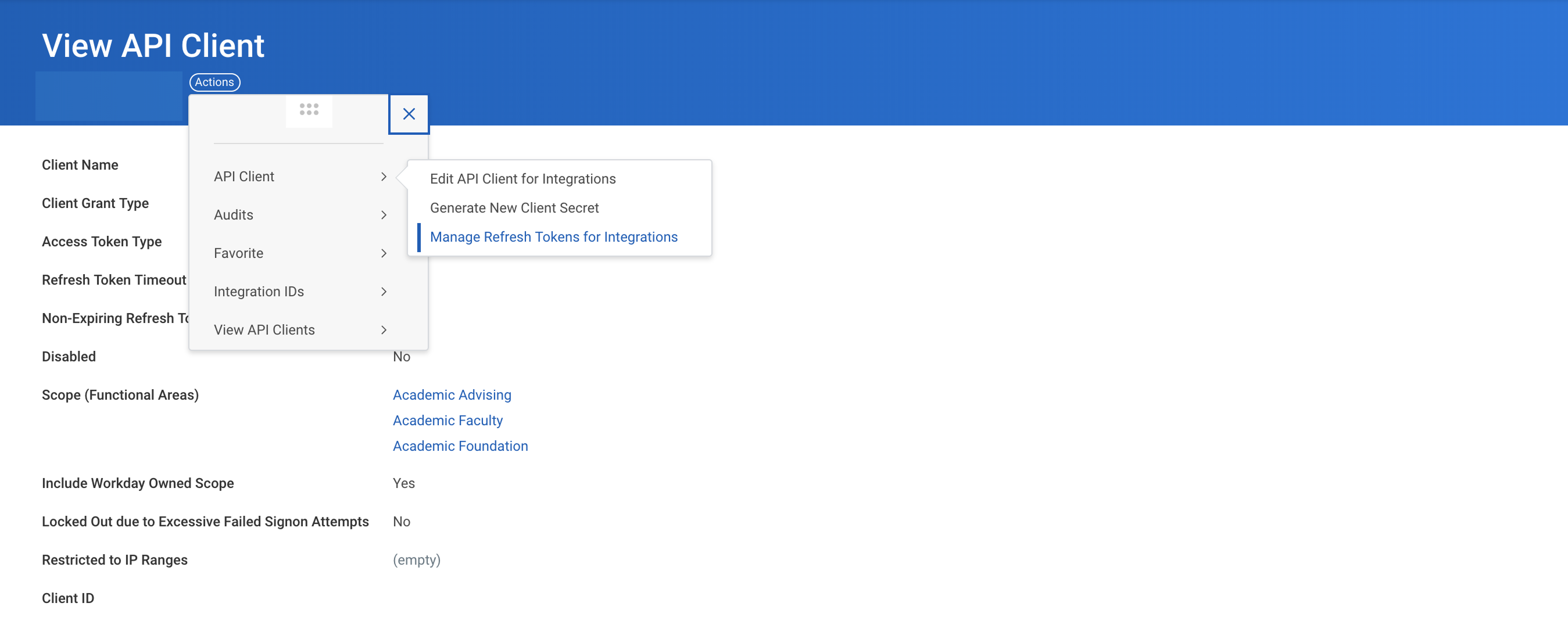

  1. Navigate to Action > API Client > Manage Refresh Tokens for Integrations

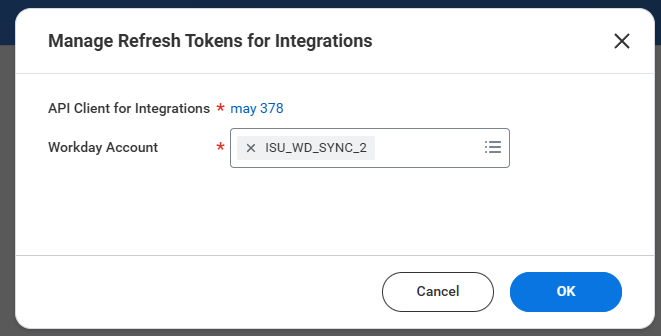

  1. Select the Integration System User (ISU) to perform all integration actions

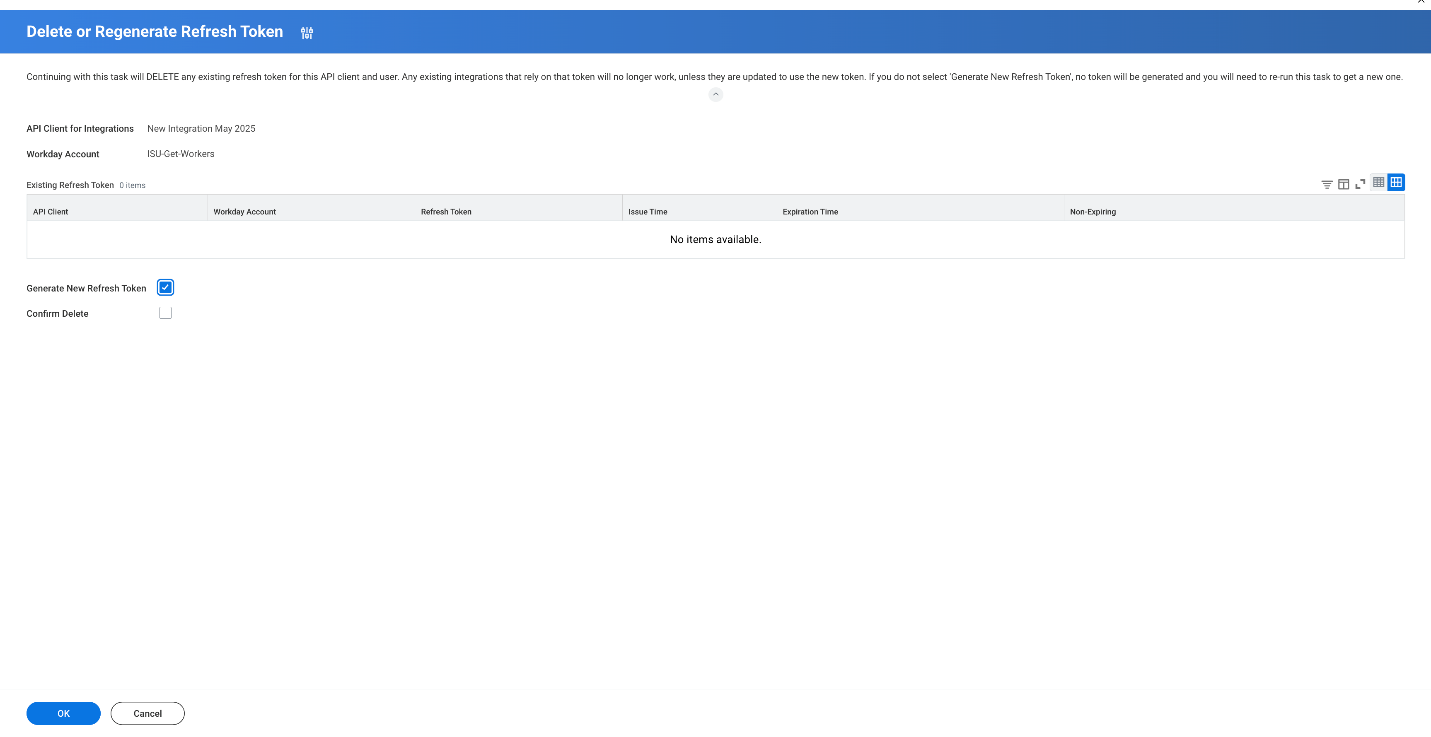

  1. If there are no existing refresh tokens, select Generate new refresh token
  1. Copy the new Refresh Token - this will be required to create a Workday connection

​
Step 5: Enter credentials in the Connect UI

Once you have your Token Domain, Tenant, Client ID, Client Secret, and Refresh Token:

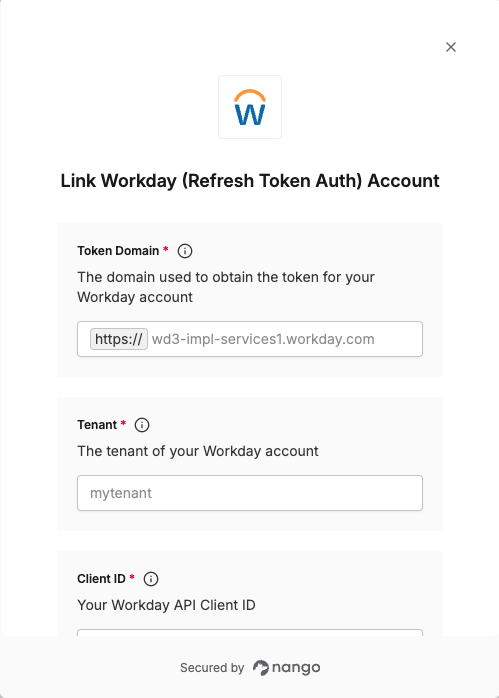

  1. Open the form where you need to authenticate with Workday (Refresh Token)
  2. Enter your Token Domain, Tenant, Client ID, Client Secret, and Refresh Token in their respective fields.
  3. Submit the form, and you should be successfully authenticated
You are now connected to Workday (Refresh Token).
